1.Specification

Commodity	Concrete Formwork System Steel Profile
Specifications	45# steel or Q235
Colour	primary
Length	according to customers' requirement
Usage	building construction
Technical processing	hot rolled
Surface	F Type Flattening
Packing	200pcs or 400pcs in a pallet
	in a container
MOQ	20 metric ton

2. Size

FORMWORK STANDARD(mm)
900x150	1200x150	1500x150	1800x150
900x250	1200x250	1500x250	1800x250
900x350	1200x350	1500x350	1800x350
900x450	1200x450	1500x450	1800x450
900x550	1200x550	1500x550	1800x550
900x200	1200x200	1500x200	1800x200
900x300	1200x300	1500x300	1800x300
900x400	1200x400	1500x400	1800x400
900x500	1200x500	1500x500	1800x500
900x600	1200x600	1500x600	1800x600

INSIDE CORNER STANDARD(mm)
Standard	Length
63X63X6	900	1200	1500	1800	2100
Special ones can also order.





OUTSIDE CORNER STANDARD(mm)
Standard	Length
100x100	900	1200	1500
100x150	900	1200	1500
100x200	900	1200	1500
150x150	900	1200	1500
150x200	900	1200	1500
200x200	900	1200	1500

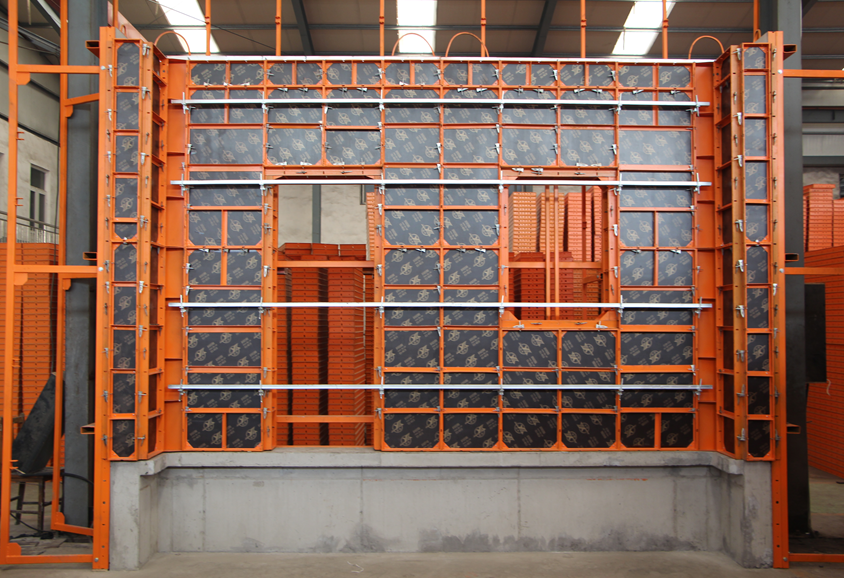

 The concrete form panels are kind of systemized formwork, easy to install and to dismantle for the reinforced concrete construction in any type. The structure of the panels is conveniently designed for various functions, enabling the panels to be reused repeatedly, helping save the costs on materials and reduce the times for work by simplifying and accelerating the process. Consequently it can cut down on the labor costs and expenses. Basic and standard products as well as various products for different types and sizes of constructions are available from manufacturing. Recycling the panel after its life-span can help reduce costs, because we can remove plywood, adjust the frame and the angle, get rid of the impurities, carry out coloring and finally attach the new plywood. The recycled forms still perform as good as the new ones, with substantially reduced costs. Other types of recycled panel are those who combine the recycled frames and the used plywood which is still in good condition.

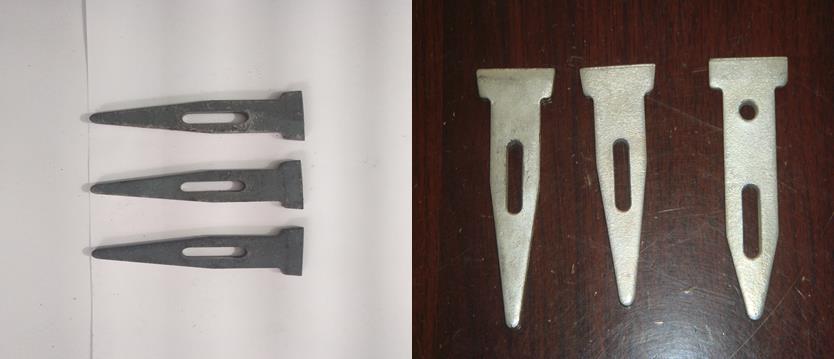

 Wedge pin

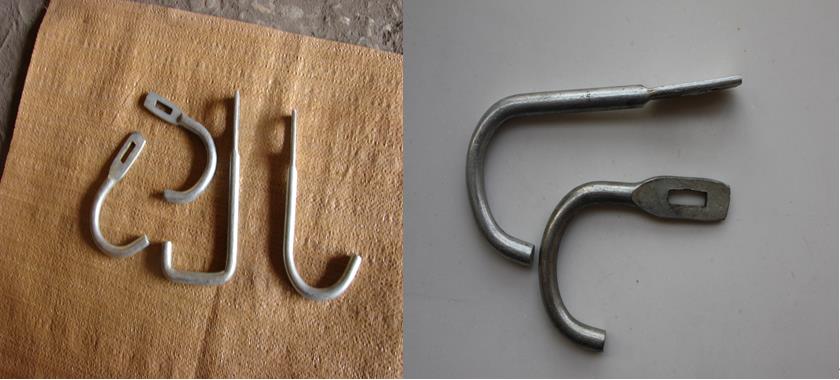

 Hook

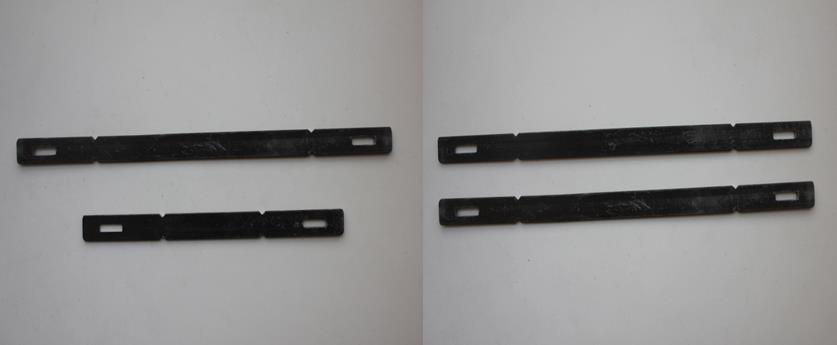

Flat tie
